Ref : 11477

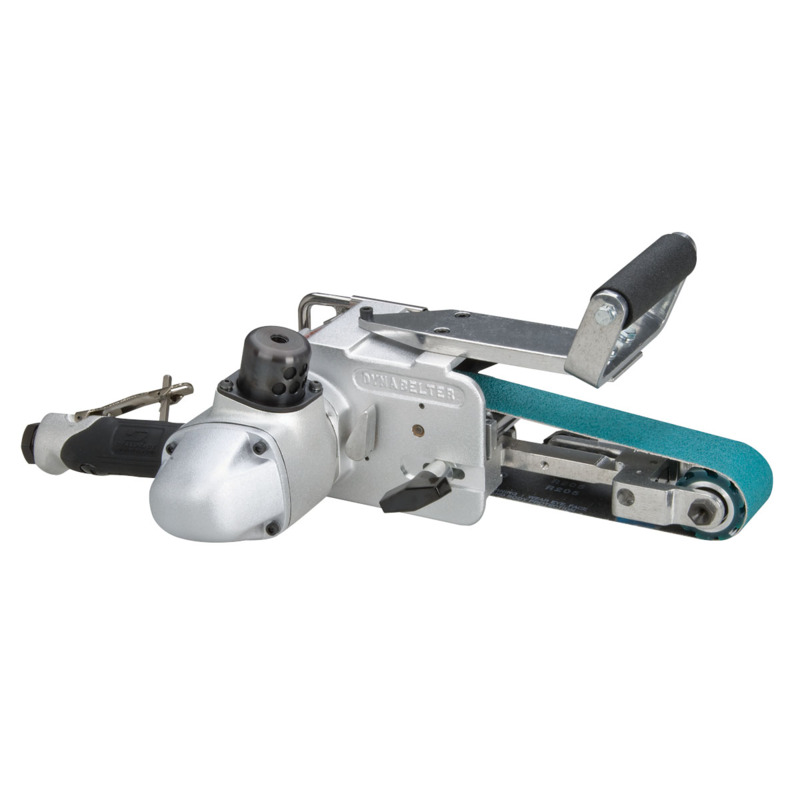

Dynabelter Abrasive Belt Tool, Extra Heavy-Duty

2 hp, Vertical, 7,200 RPM, Front Exhaust, for 1"-2" W x 30" L (25-51 mm x 762 mm) Belts

$3,351.00 Tax Excl.
Share

  • For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.

  • Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.

  • Extra Heavy-Duty, 2.0 hp model accepts 2" wide x 30" long abrasive belts. Includes pressure bar with top control handle. Includes 11870 Contact Arm Assembly.

  • 11871 Contact Arm with 4" dia. contact wheel is available for 2" wide x 60" long belts, providing a 20" workable reach. Optional 11891 Platen is available for 11871 Arm.

  • Ideal for use with 1/2" Dynaswivel, and 98273 Coupler/Plug Assembly.

hp
2 hp
Max. RPM
7200
Exhaust Type
Air Inlet Thread
Tool Style
Right Angle
Hose I.D.
Height (mm)
197 mm
Height (in)
8 in
Length (in)
22 in
Length (mm)
546 mm
Width (in)
13 in
Width (mm)
330 mm
Weight (kg)
7.1 kg
Weight (lb)
15.66 lb
Max. SFPM
4700
Vacuum Type
Current Manual (Parts Page) PD97.34
Tune-Up Kit Page 96259
Previous Manual (Parts Page) #1 PD91.28
Literature 00001676

Related products

1/2" Female Coupler
Ref : 98269
1/2" Female Coupler
$59.48 Tax Excl.

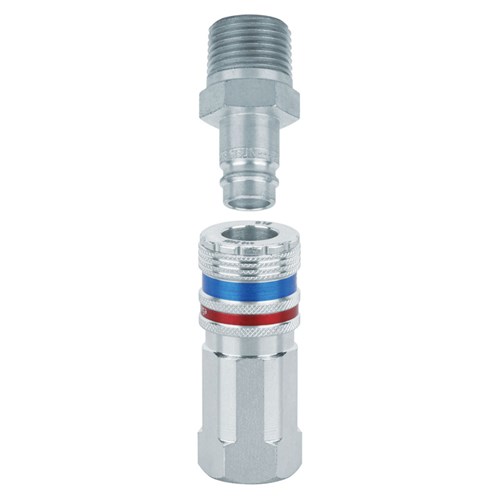

1/2" Female Coupler with 1/2" Male Plug Assembly
Ref : 98273
1/2" Female Coupler with 1/2" Male Plug Assembly
$93.16 Tax Excl.

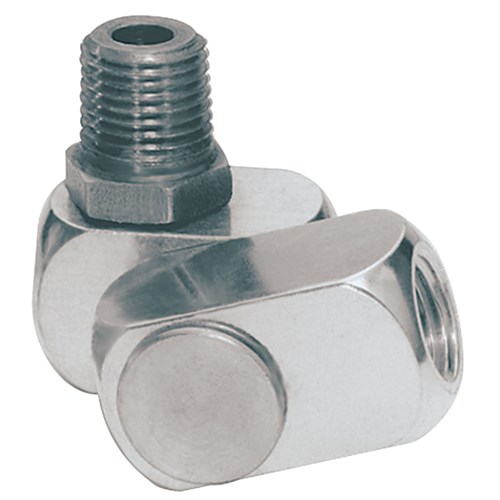

1/2" NPT Original Aluminum Dynaswivel
Ref : 95462
1/2" NPT Original Aluminum Dynaswivel
$97.58 Tax Excl.
1/4" (6 mm) W x 7" (178 mm) L Hard Platen Pad 5-Pkg.
Ref : 11033
1/4" (6 mm) W x 7" (178 mm) L Hard Platen Pad 5-Pkg.
$26.1 Tax Excl.
2" (51 mm) W x 7" (178 mm) L Platen Pad
Ref : 11834
2" (51 mm) W x 7" (178 mm) L Platen Pad
$27.22 Tax Excl.
2" (51 mm) W x 7" (178 mm) L Platen Pad
Ref : 11814
2" (51 mm) W x 7" (178 mm) L Platen Pad
$28.22 Tax Excl.
Ref : 11659
2" Platen Assembly
$114.83 Tax Excl.

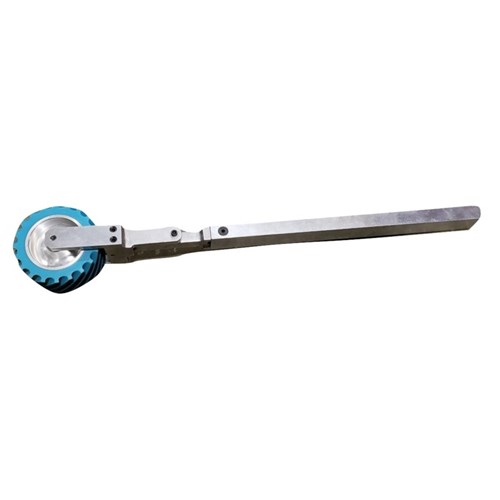

Contact Arm Assy
Ref : 11871
Contact Arm Assy
$1,377.5 Tax Excl.
Contact Arm Ass'y, 1'' Dia. X 1'' W, Smooth Rubber, 2 Wheels, 80 Duro
Ref : 11668
Contact Arm Ass'y, 1'' Dia. X 1'' W, Smooth Rubber, 2 Wheels, 80 Duro
$553.15 Tax Excl.
Contact Arm Ass'y, 1'' Dia. X 1'' W, Smooth Rubber, 80 Duro
Ref : 11663
Contact Arm Ass'y, 1'' Dia. X 1'' W, Smooth Rubber, 80 Duro
$349.37 Tax Excl.
Contact Arm Ass'y, 2'' Dia. X 1'' W, Serrated Rubber
Ref : 11681
Contact Arm Ass'y, 2'' Dia. X 1'' W, Serrated Rubber
$403.1 Tax Excl.
Contact Arm Ass'y, 2'' Dia. X 1'' W, Serrated Urethane, 90 Duro
Ref : 11717
Contact Arm Ass'y, 2'' Dia. X 1'' W, Serrated Urethane, 90 Duro
$724.27 Tax Excl.
Contact Arm Ass'y, 2'' Dia. X 2'' W, Rubber
Ref : 11870
Contact Arm Ass'y, 2'' Dia. X 2'' W, Rubber
$695.15 Tax Excl.
Contact Arm Ass'y, 4'' Dia. X 1/2'' W, Radiused Rubber, 70 Duro
Ref : 11682
Contact Arm Ass'y, 4'' Dia. X 1/2'' W, Radiused Rubber, 70 Duro
$422.23 Tax Excl.
Contact Arm Ass'y, 4'' Dia. X 5/8'' W, Serrated Rubber
Ref : 11684
Contact Arm Ass'y, 4'' Dia. X 5/8'' W, Serrated Rubber
$460.44 Tax Excl.
Dynuba 26, 1-1/2 lb. Grease Tube
Ref : 60020
Dynuba 26, 1-1/2 lb. Grease Tube
$43.1 Tax Excl.

Related abrasives

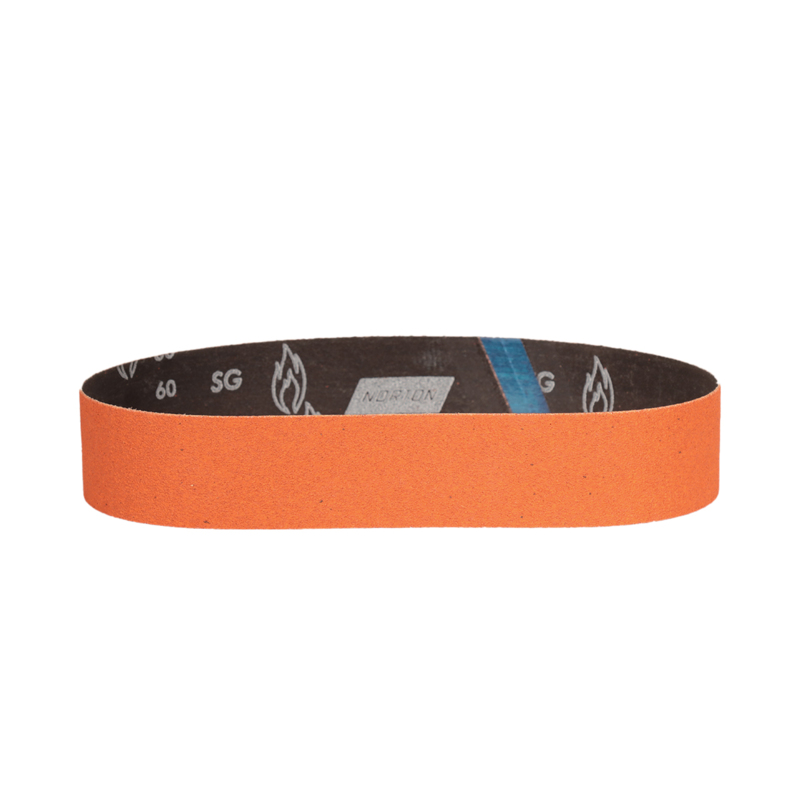

2" (51 mm) W x 30" (762 mm) L 60 Grit DynaCut Premium Ceramic Belt
Ref : 79173
2" (51 mm) W x 30" (762 mm) L 60 Grit DynaCut Premium Ceramic Belt
$17.89 Tax Excl.
1" (25 mm) W x 30" (762 mm) L 40 Grit DynaCut Premium Ceramic Belt
Ref : 79169
1" (25 mm) W x 30" (762 mm) L 40 Grit DynaCut Premium Ceramic Belt
$9.66 Tax Excl.

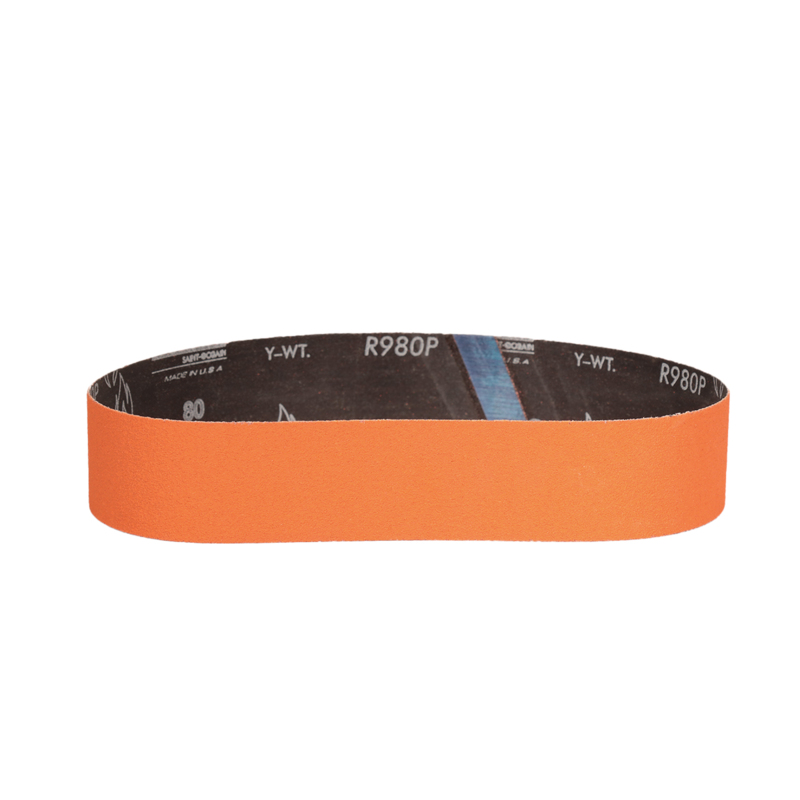

2" (51 mm) W x 30" (762 mm) L 80 Grit DynaCut Premium Ceramic Belt
Ref : 79174
2" (51 mm) W x 30" (762 mm) L 80 Grit DynaCut Premium Ceramic Belt
$17.89 Tax Excl.

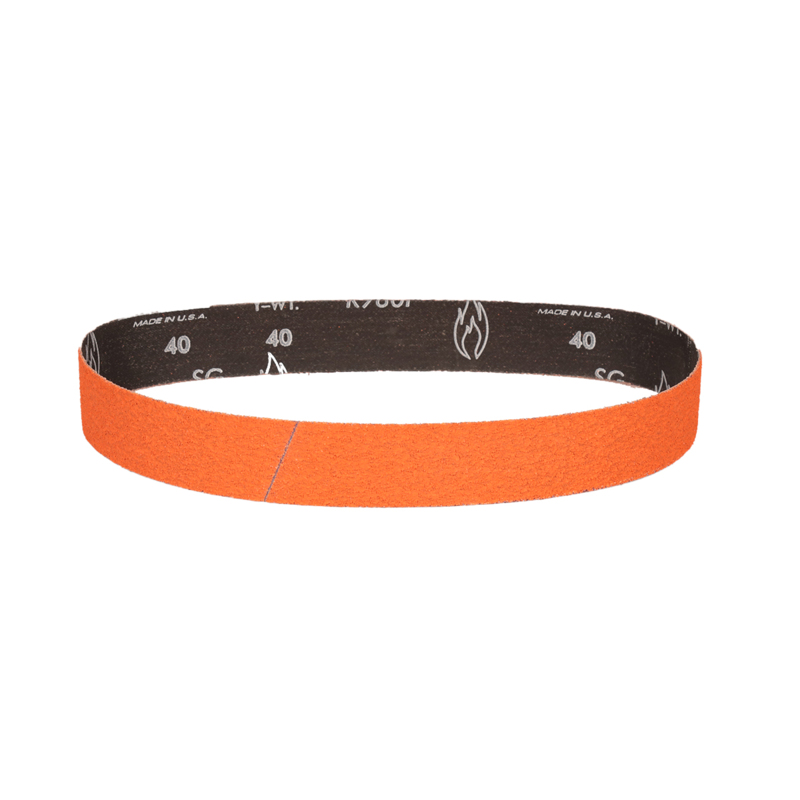

1-1/2" (38 mm) W x 30" (762 mm) L 40 Grit DynaCut Premium Ceramic Belt
Ref : 79153
1-1/2" (38 mm) W x 30" (762 mm) L 40 Grit DynaCut Premium Ceramic Belt
$15.04 Tax Excl.

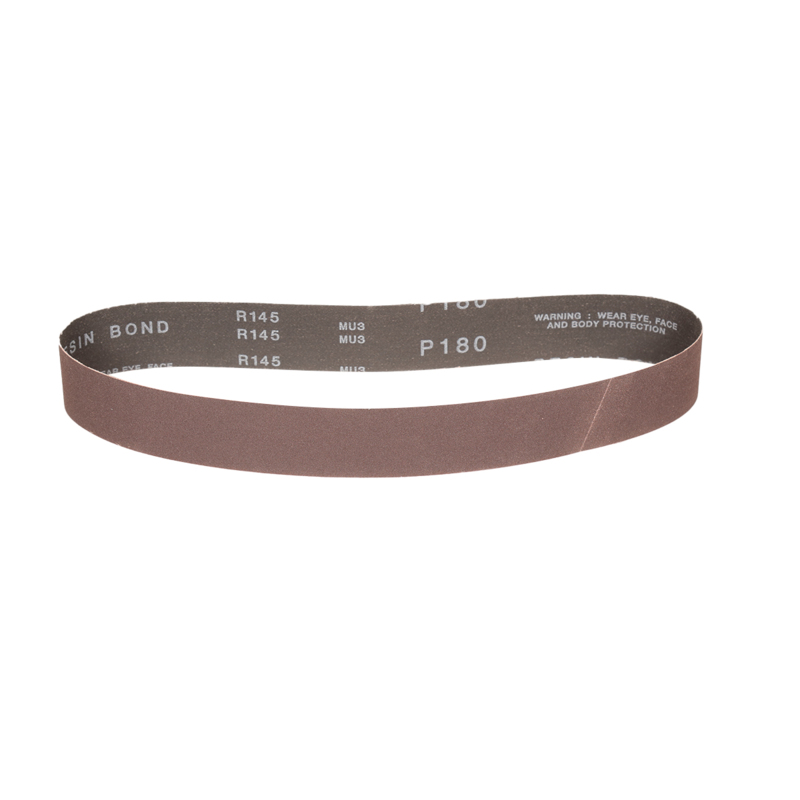

1-1/2" (38 mm) W x 30" (762 mm) L 180 Grit A/O DynaCut Belt
Ref : 90593
1-1/2" (38 mm) W x 30" (762 mm) L 180 Grit A/O DynaCut Belt
$4.08 Tax Excl.

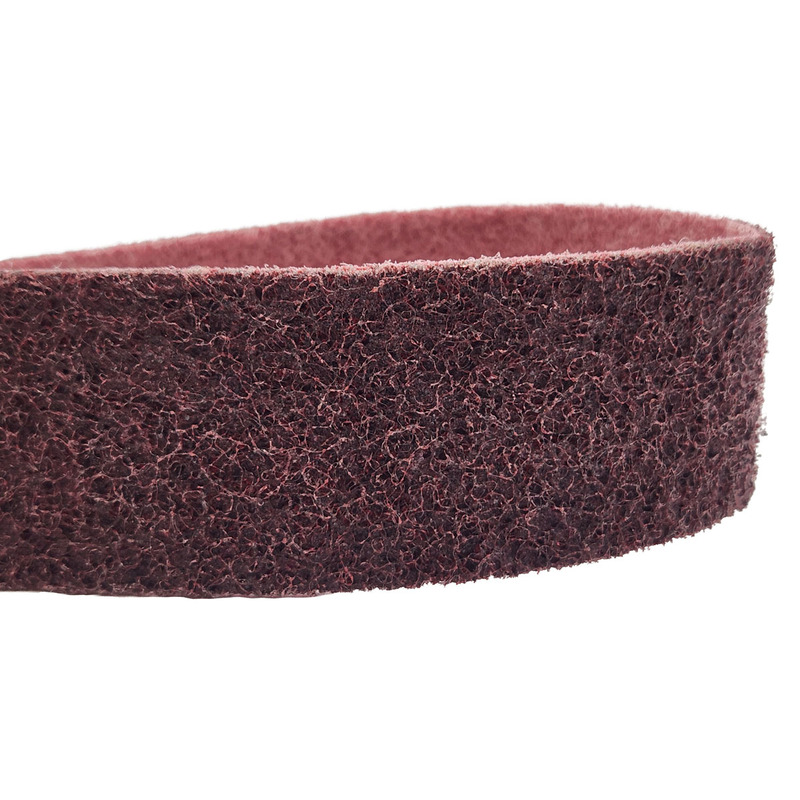

2" (51 mm) W x 30" (762 mm) L Medium NWN DynaBrite Belt
